TOMASETTO NORDIC at09
4 ცილნდრიანი
საბითუმო ფასი 125 ₾
საცალო ფასი 150 ₾
TOMASETTO NORDIC XP
6 ცილნდრიანი
საბითუმო ფასი 145 ₾
საცალო ფასი 170 ₾
TOMASETTO ANTARTIC XP
8 ცილნდრიანი
საბითუმო ფასი 190 ₾
საცალო ფასი 230 ₾
3 ცილინდრიანი ინჟექტორი RAIL INJECTOR IG1
საბითუმო ფასი 70 ₾
პროდუქტი არ არის საწყობში
საცალო ფასი 90 ₾
Characteristic Unit Value Note |
||||
Injector Version |
N° of cylinders |
2, 3, 4 |
||
Material body and treatment |
Aluminium black anodized |
|||
Relative Pressure |
Bar (Psi) |
From 0,5 to 2,0 (7 to 29) |
Working pressure |
|
3,0 (43) |
Max pressure |
|||
Rated voltage (at coil) |
Volt |
10,8 – 14,4 |
||
Minimum copper wire section for coil connection |
mm2 |
0,75 |
||
Coil type |
by encoding |
A2 |
A3 |
|
Resistance |
Ω |
2 |
3 |
± 5% at T= 25° |
Suggested peak current time (duration) |
ms |
4 |
4,2 |
|
Suggested peak current value |
A |
|||
Suggested holding current (±10%) |
A |
1 |
||
Cold Starting Requirements |
Increase up to 20% the “peak current time” for first cycles when gas temperature is < 10°C |
|||
Complete OPENING Response Time |
ms |
2,6 |
3 |
(±10% – total injection time 5 ms) ± 5% tested without nozzle at 14V Dp=1 bar T= 25°C |
Complete CLOSING Response Time |
ms |
2,8 |
2,8 |
|
Minimum injection pulse |
ms |
2,7 |
3,1 |
tested with 2 mm nozzle diameter at 14V ∆p=1bar T= 25°C |
Stroke |
Micron |
450 |
||
Seat Diameter |
mm |
3,3 |
||
Static flow rate (with max nozzle Φ) for 1 single injector at 20°C (with air) |
SLPM (sL/min) |
105 |
at 1 bar inlet pressure |
|
Calculated max flow rate(with max nozzle Φ) for 1 single injector CNG at 20°C (G20 CNG fluid) |
gr/sec |
1,62 |
at 1 bar inlet pressure |
|
Kg/h |
5,84 |
at 1 bar inlet pressure |
||
Calculated max flow rate(with max nozzle Φ) for 1 single injector LPG at 20°C |
gr/sec |
2,8 |
at 1 bar inlet pressure |
|
Kg/h |
10 |
at 1 bar inlet pressure |
||
Leakage (tested with air) |
cc/h |
≤ 15 |
Noise level
dB
64
±1 dB Rail Test Condition
Compatibility with gas
Driver Stage
Coil Connector type
LPG, CNG
Peak and Hold (PWM)
2 way Amp/Delphi super seal fermale connector with tab contacts
About connecting wire, refer to our drawing, code 114.01.AMP.001
Inlet gas fitting for rubber hose
mm
∅10 mm / ∅12 mm / ∅14 mm / ∅16 mm
Outlet gas fitting
Calibrated hole ᴓ range (for nozzles)
Approvals
Calibrated nozzles M8x1 for rubber hose ∅ 4 mm – ∅ 5 mm – ∅ 6 mm
∅
From 1,00 to 2,75 mm (0,25 mm step)
110R-00 67R-01 (-40°C / +120°C) ISO 15500-2:2016 ISO 15500-7:2015
Principle of operation
Power handling capability LPG
Solenoid valve – Normally closed – Mobile Plunger
1 bar up to 40 HP/cyl
Power handling capability CNG
HP/cyl
2 bar up to 35 HP/cyl
Coil IP Rating
IP67
4 ცილინდრიანი ინჟექტორი RAIL INJECTOR IG1
საბითუმო ფასი 80 ₾
პროდუქტი არ არის საწყობში
საცალო ფასი 100 ₾
Characteristic Unit Value Note |
||||
Injector Version |
N° of cylinders |
2, 3, 4 |
||
Material body and treatment |
Aluminium black anodized |
|||
Relative Pressure |
Bar (Psi) |
From 0,5 to 2,0 (7 to 29) |
Working pressure |
|
3,0 (43) |
Max pressure |
|||
Rated voltage (at coil) |
Volt |
10,8 – 14,4 |
||
Minimum copper wire section for coil connection |
mm2 |
0,75 |
||
Coil type |
by encoding |
A2 |
A3 |
|
Resistance |
Ω |
2 |
3 |
± 5% at T= 25° |
Suggested peak current time (duration) |
ms |
4,2 |
4,5 |
|
Suggested peak current value |
A |
|||
Suggested holding current (±10%) |
A |
1 |
||
Cold Starting Requirements |
Increase up to 20% the “peak current time” for first cycles when gas temperature is < 10°C |
|||
Complete OPENING Response Time |
ms |
2,8 |
3,2 |
(±10% – total injection time 5 ms) ± 5% tested without nozzle at 14V Dp=1 bar T= 25°C |
Complete CLOSING Response Time |
ms |
2,8 |
2,8 |
|
Minimum injection pulse |
ms |
2,8 |
3,2 |
tested with 2 mm nozzle diameter at 14V ∆p=1bar T= 25°C |
Stroke |
Micron |
600 |
1,7 A supply current |
|
Seat Diameter |
mm |
3,3 |
||
Static flow rate (with max nozzle Φ) for 1 single injector at 20°C (with air) |
SLPM (sL/min) |
132 |
at 1 bar inlet pressure |
|
Calculated max flow rate(with max nozzle Φ) for 1 single injector CNG at 20°C (G20 CNG fluid) |
gr/sec |
1,97 |
at 1 bar inlet pressure |
|
Kg/h |
7,11 |
at 1 bar inlet pressure |
||
Calculated max flow rate(with max nozzle Φ) for 1 single injector LPG at 20°C |
gr/sec |
3,5 |
at 1 bar inlet pressure |
|
Kg/h |
12,62 |
at 1 bar inlet pressure |
Leakage (tested with air)
Noise level
Compatibility with gas
cc/h
≤ 15
dB
64
LPG, CNG
∅10 mm / ∅12 mm / ∅14 mm / ∅16 mm
±1 dB Rail Test Condition
Driver Stage
Coil Connector type
Peak and Hold (PWM)
2 way Amp/Delphi super seal fermale connector with tab contacts
About connecting wire, refer to our drawing, code 114.01.AMP.001
Inlet gas fitting for rubber hose
mm
Outlet gas fitting
Calibrated nozzles M8x1 for rubber hose ∅ 4 mm – ∅5mm- ∅6mm
Calibrated hole ᴓ range (for nozzles)
Approvals
∅
From 1,00 to 3,25 mm (0,25 mm step)
110R-00 67R-01 (-40°C / +120°C) ISO 15500-2:2016 ISO 15500-7:2015
Principle of operation
Power handling capability LPG
HP/cyl
Solenoid valve – Normally closed – Mobile Plunger
1 bar up to 45 HP/cyl
Power handling capability CNG
HP/cyl
2 bar up to 40 HP/cyl
Coil IP Rating
IP67
ფილტრი CZAJA FL01S 12/12
საბითუმო ფასი 4 ₾
საცალო ფასი 7 ₾
FL01S
DISPOSABLE LPG AND CNG DRY GAS FILTER WITH PAPER CARTRIDGE.
Housing material:
Aluminum
Inlet diameter / Outlet diameter:
ø 11, 12, 14, 16 mm / ø 11, 12, 14, 16 mm
Available in all combinations of inlet and outlet diameters
Filtration material:
Paper 843 VH 134
Filtration surface / Captured particles:
0,031 m2 / from 2μm in 99%
Capacity:
12 l/s
Approvals:
LPG – E20-67R-010703
CNG – E20-110R-000025
ფილტრი CZAJA FL01Y 12/12
საბითუმო ფასი 6 ₾
საცალო ფასი 10 ₾
FL01Y
DISPOSABLE LPG AND CNG DRY GAS FILTER WITH PAPER CARTRIDGE AND DOUBLE OUTLET.
Housing material:
Aluminum
Inlet diameter / Outlet diameter:
ø 11, 12, 14, 16 mm / ø 11, 12 mm
Available in all combinations of inlet and outlet diameters
Filtration material:
Paper 843 VH 134
Filtration surface / Captured particles:
0,039 m2 / from 2μm in 99%
Capacity:
25 l/s
Approvals:
LPG – E20-67R-010703
CNG – E20-110R-000025

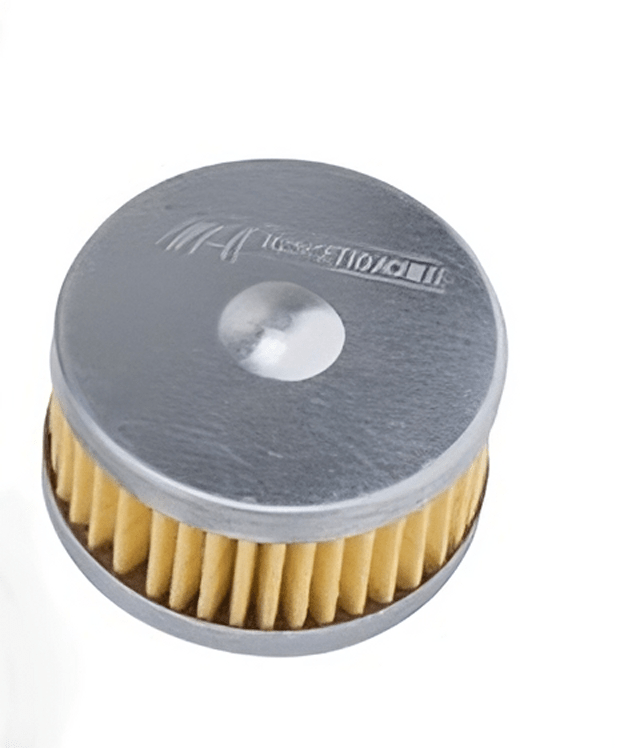

რედუქტორის ფილტრი TOMASETTO TMS03
საბითუმო ფასი 2 ₾
საცალო ფასი 3 ₾
თხევადი გაზის პოლონური მილები FAGUMIT LPG/CNG
• assigned to car LPG/CNG (propane/methane) systems
- • working temp.: from -25°C up to 125°C
- • tube: NBR, black, smooth, resistant to LPG/CNG and heat ageing with low gas permeablity
- • reinforcement: textile
- • cover: NBR, black, smooth, resistant to LPG/CNG, heat ageing and ozone
FAGUMIT - გაზის მილი
1 მეტრი | საცალო ფასი ₾ | საბითუმო ფასი 10> ცალი ₾ |
---|---|---|
4mm | 5 ₾ | 4,5 ₾ |
5mm | 6 ₾ | 5 ₾ |
12mm | 10 ₾ | 8,50 ₾ |
16mm | 15 ₾ | 9,50 ₾ |
ცილინდრული
ტოროიდალური შიდა
ტოროიდალური გარე
ATIKER ბალონის ფასები ტივტივით
ცილინდრული | საცალო ფასი ₾ | საბითუმო ფასი 10> ცალი ₾ |
---|---|---|
S01.300050 D.300 50 LT | 250 | 230 |
S01.300055 D.300 55 LT | 270 | 250 |
S01.315055 D.315 55 LT | 260 | 240 |
S01.315060 D.315 60 LT | 270 | 250 |
S01.315065 D.315 65 LT | 270 | 250 |
S01.315070 D.315 70 LT | 280 | 260 |
S01.315075 D.315 75 LT | 310 | 290 |
S01.360070 D.360 70 LT | 280 | 260 |
S01.360075 D.360 75 LT | 310 | 290 |
S01.360080 D.360 80 LT | 340 | 310 |
S01.360085 D.360 85 LT | 340 | 310 |
S01.360090 D.360 90 LT | 360 | 330 |
S01.360100 D 360 100 LT | 380 | 350 |
S01.400095 D.400 95 LT | 360 | 340 |
S01.400100 D.400 100 LT | 380 | 350 |
S01.400110 D.400 110 LT | 400 | 370 |
S01.400120 D.400 120 LT | 410 | 390 |
S01.400130 D.400 130 LT | 440 | 420 |
S01.400130 D.400 140 LT | 450 | 430 |
ტოროიდალური შიდა | საცალო ფასი | საბითუმო ფასი 10> ცალი |
T01.580035 D.580 H.180 35 LT | 300 | 270 |
T01.600038 D.600 H.180 38 LT | 310 | 280 |
T01.600042 D.600 H.200 42 LT | 320 | 290 |
T01.600048 D.600 H.225 48 LT | 330 | 300 |
T01.630043 D.630 H.180 43 LT | 320 | 310 |
T01.630048 D.630 H.200 48 LT | 330 | 300 |
T01.630054 D.630 H.225 54 LT | 340 | 310 |
T01.650047 D.650 H.180 47 LT | 360 | 330 |
T01.650051 D.650 H.200 51 LT | 370 | 340 |
T01.650059 D.650 H.225 59 LT | 390 | 360 |
T01.650063 D.650 H.240 63 LT | 410 | 380 |
T01.680050 D.680 H.180 50 LT | 380 | 350 |
T01.680057 D.680 H.200 57 LT | 380 | 350 |
T01.680065 D.680 H.225 65 LT | 400 | 370 |
T01.680069 D.680 H.240 69 LT | 420 | 390 |
T01.720054 D.720 H.180 54 LT | 390 | 360 |
T01.720061 D.720 H.200 61 LT | 400 | 370 |
T01.720061 D.720 H.225 72 LT | 430 | 400 |
ტოროიდალური გარე | საცალო ფასი | საბითუმო ფასი 10> ცალი |
T02.650047 D.600 H.200 42 LT | 370 | 340 |
T02.650051 D.630 H.200 48 LT | 380 | 350 |
T02.650047 D.650 H.180 47 LT | 390 | 360 |
T02.650051 D.650 H.200 51 LT | 400 | 370 |
T02.680050 D.680 H.180 50 LT | 410 | 380 |
T02.680057 D.680 H.200 57 LT | 420 | 390 |
T02.680065 D.680 H.225 65 LT | 430 | 400 |
T02.720072 D.720 H.225 72 LT | 450 | 420 |
T02.720080 D.720 H.250 80 LT | 500 | 460 |
T02.720089 D.720 H.270 89 LT | 510 | 470 |
-
საბითუმო გაყიდვების მინიმალური ოდენობაა 10 > ცალი
- ფასები მოიცავს დ.ღ.გ -ს
